I got a large lot of these in and after 2 weeks of sorting here is what I have

These are all Marvell processors, all with ARM cores with speeds from 312MHz up to around 1GHz

$4 each or you can have one of each (Now 26 parts) for $50

What are these processors?

The 88CP90x are Intel XScale ARM cores running at 312MHz that include Cellular baseband functions. They are made on a 130nm process

The 88CP930 PXA930 (codename Tavor-P) is the first of the Marvell Sheeva-PJ4 core, which is loosely based on the ARM Cortex-A8. Initial speeds were 624MHz-800MHz. They are made on a 65nm process

The 88CP935 PXA935 (codename Tavor-P65) is a shrink of the 930. It is made on a 45nm process (though some of the Eng Samples were 55nm) and increased speeds to 1GHz

The 88CP940 PXA940 has very little documentation It was used by some blackberry phones and has features similar to the PXA935. It is a 45nm design and runs 624-1000MHz

The 88CP950 PXA950 (codename Tavor-PV2 is closer in performance to a ARM11 and runs around 1-1.2GHz

The 88CP955 PXA955 (codename MG-1) is designed for and used in several tablets. It runs at around 1.2GHz

All of the 93x and 95x parts are a Tavor Tri-core architecture which means they can execute ARMv5TE v6 as well as v7 instruction sets.

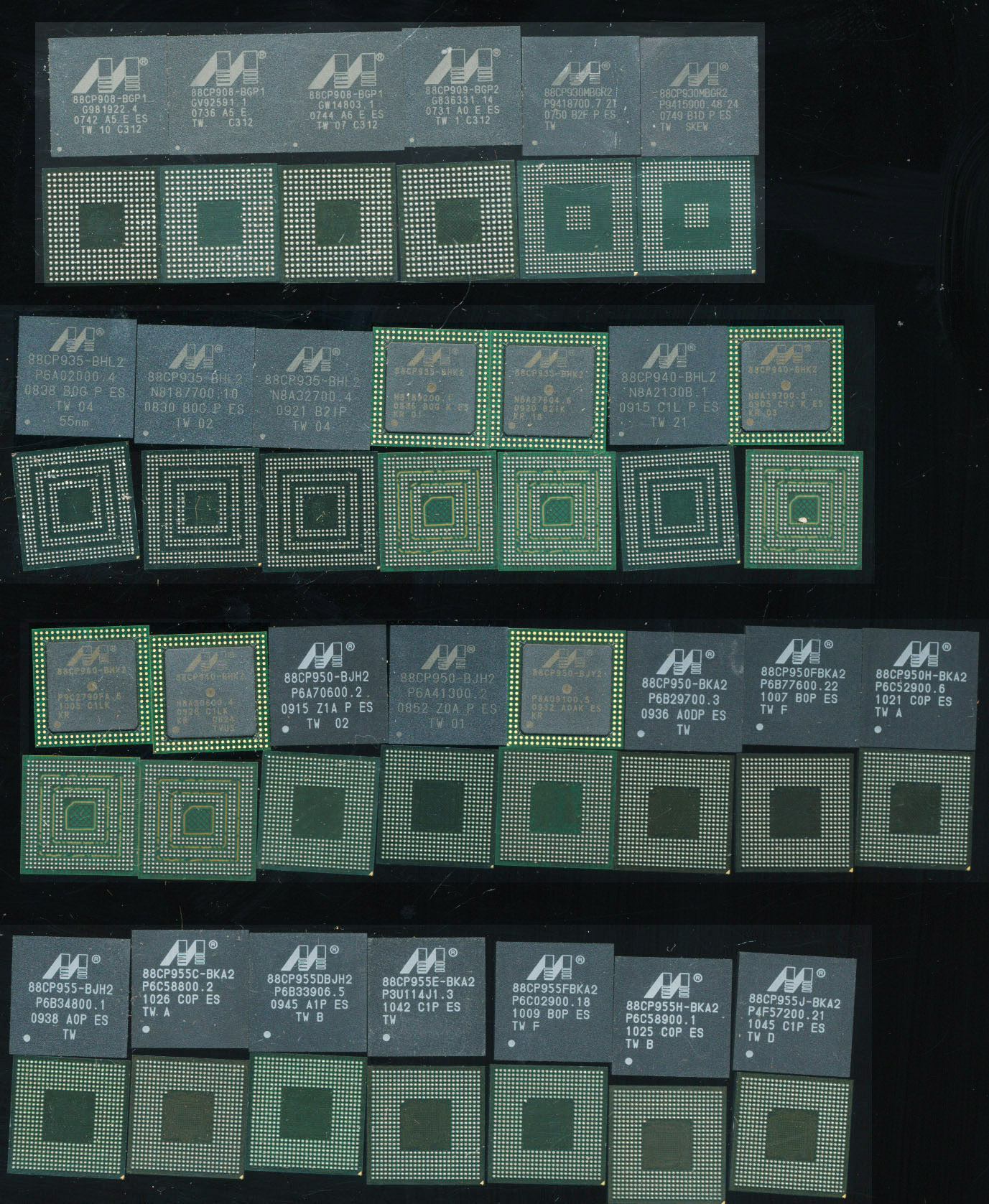

A1 20x 88CP908-BGP1 Rev A5 312MHz RoHS Eng Sample
A2 20x 88CP908-BGP1 Rev A5 312MHz RoHS Produciton
A3 20x 88CP908-BGP1 Rev A6 312MHz RoHS Eng Sample
A4 20x 88CP909-BGP2 Rev A0 (first rev) 312MHz Green Eng Sample
A5 SOLD OUT x 88CP930MBGR2 Green Eng Sample
A6 SOLD OUT x 88CP930MMGR2 SKEW (used for clock testing) Green Eng Sample

B1 20x 88CP935-BHL2 marked 55nm (production was 45nm) Green Eng Sample
B2 20x 88CP935-BHL2 Green Eng Sample
B3 20x 88CP935-BHL2 Green Production
B4 20x 88CP935-BHK2 Green Eng Sample
B5 20x 88CP935-BHK2 Green Production
B6 20x 88CP940-BHL2 Green Eng Sample
B7 20x 88CP940-BHK2 Green Eng Sample

C1 20x 88CP940-BHK2 Green Production
C2 20x 88CP940-BHK2 624MHz Green Production
C3 20x 88CP950-BJH2 (white print) Green Eng Sample
C4 20x 88CP950-BJH2 (laser marked) Green Eng Sample
C5 20x 88CP950-BJY2 Green Eng Sample
C6 20x 88CP950-BKA2 Rev A0 Green Eng Sample
C7 15x 88CP950FBAK2 Rev B0 Green Eng Sample
C8 15x 88CP950H-BKA2 Rev C0 Green Eng Sample

D1 20x 88CP955-BJH2 Rev A0 Green Eng Sample
D2 20x 88CP955C-BKA2 Rev C0 Green Eng Sample
D3 20x 88CP955DBJH2 Rev A1 Green Eng Sample
D4 20x 88CP955E-BKA2 Rev C1 Green Eng Sample
D5 20x 88CP955FBAK2 Rev B0 Green Eng Sample
D6 20x 88CP955H-BKA2 Rev C0 Green Eng Sample
D7 20x 88CP955J-BKA2 Rev C1 Green Eng Sample

Notes:
RoHS (a '1' at the end of the part #) means RoHS compliant
Green (a '2' at the end of the part #) means RoHS + Halogen Free
