 Posted: Sat Apr 25, 2020 11:13 am Post subject: [UCA] ES/Unusual CPU Analysis Thread - Updated 2020-05-25 |
 |
|
I will post here all ES/Rare/Unusual CPUs analyzed with the Universal Chip Analyzer.

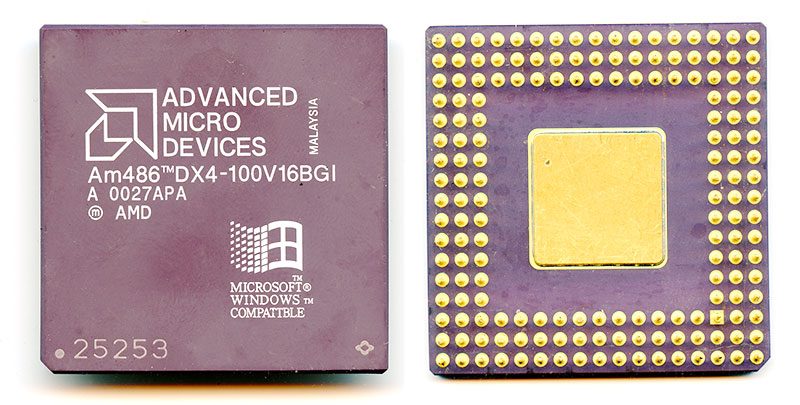

-> [2020-04-25] Fake Am486DX4-100V16BGI

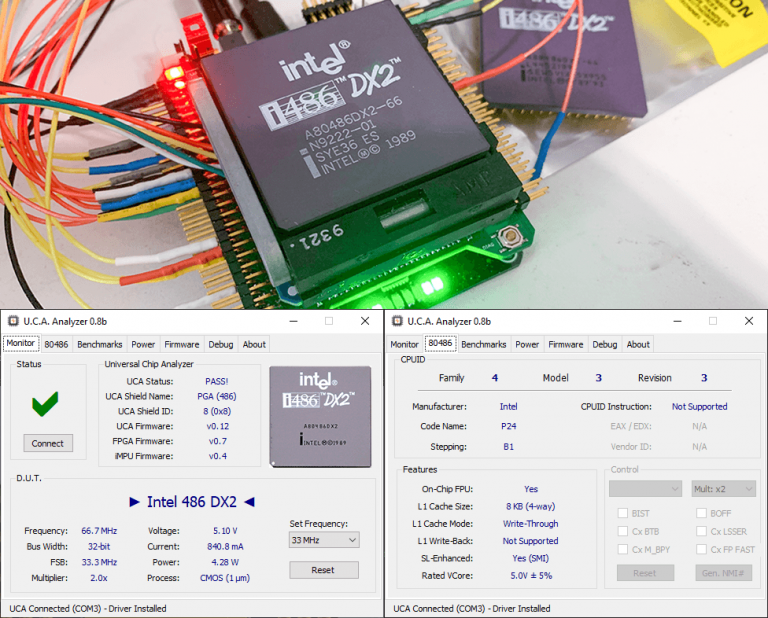

-> [2020-05-11] Intel 486 DX2-66 SYE36 ES
-> [2020-05-16] Blank AMD & IT'S ST/Cyrix 486s
-> [2020-05-25] UMC Green CPU U5S-SUPER33 ES
->
_________________
ES-Only Collector : http://www.engineering-sample.com
Universal Chip Analyzer (UCA) : https://x86.fr/uca / http://www.cpu-world.com/forum/viewtopic.php?t=34349
Last edited by xsecret on Mon May 25, 2020 6:42 am; edited 4 times in total |
|
| Back to top |
|
 |
xsecret
Joined: 01 Feb 2004
Posts: 1846
Location: France
|
|
| Back to top |
|
|
Neon
Joined: 04 Feb 2008
Posts: 1512
Location: Dallas, Texas, USA
|
| Posted: Sat Apr 25, 2020 12:34 pm Post subject: |
|
|
Thank you for this. I agree with your analysis - the date code is much too recent for package 25253. The mis-spelling clinches the conclusion that it is fake.
I have an identical-looking fake sample, and would like to confirm your finding after I can get a UCA. |
|
| Back to top |
|
|
frag_
Joined: 17 Nov 2008
Posts: 4015
Location: Estonia
|
| Posted: Sat Apr 25, 2020 12:39 pm Post subject: |
|
|
I also have one with exactly the same datecode, bought in Russia, it's desoldered.
So they are quite widespread. |
|
| Back to top |
|
|
Guest
|
| Posted: Sun Apr 26, 2020 2:56 am Post subject: |
|
|
As far as I know, the only 486-class CPU from AMD with 16KB L1 cache was 5x86 (or 486 DX5 as it was also named).
So there are not (or should not be) any other 486-class CPU from AMD with 16KB L1 cache.
Intel had 16KB L1 cache in its last gen 486-class processor, the DX4. |
|
| Back to top |
|
|
Elar
Joined: 16 Jul 2003
Posts: 746
Location: Tallinn, Estonia
|
| Posted: Sun Apr 26, 2020 4:35 am Post subject: |
|
|
| Anonymous wrote: | As far as I know, the only 486-class CPU from AMD with 16KB L1 cache was 5x86 (or 486 DX5 as it was also named).
So there are not (or should not be) any other 486-class CPU from AMD with 16KB L1 cache.
Intel had 16KB L1 cache in its last gen 486-class processor, the DX4. |
AMD datasheet https://en.wikichip.org/w/images/1/13/AMD_Enhanced_Am486_%28March%2C_1997%29.pdf disagrees with you. There was also DX2-66 and DX4-100 with 16KB write-back cache. |
|
| Back to top |
|
|
Andreycpu
Joined: 13 Feb 2016
Posts: 1216
Location: Russia
|
| Posted: Sun Apr 26, 2020 6:19 am Post subject: |
|
|
I have exactly the same, it is soldered.
He will be fake too? |
|
| Back to top |
|
|
Wasmachineman_NL
Joined: 04 Jul 2019
Posts: 988
Location: Netherlands
|
| Posted: Sun Apr 26, 2020 8:06 am Post subject: |
|
|
| Andreycpu wrote: | I have exactly the same, it is soldered.
He will be fake too? |
Definitely a fake, CompaTTble and non-grided AMD logo. |
|
| Back to top |
|
|
xsecret
Joined: 01 Feb 2004
Posts: 1846
Location: France
|
|
| Back to top |
|
|
Neology
Joined: 25 May 2011
Posts: 2412
Location: VIC, AU
|
| Posted: Sun Apr 26, 2020 9:24 am Post subject: |
|
|
From the UCA software interface, it displays as DX4-100 V8T, but the reference photo is a DX4-100SV8B..... I guess it is a bug?
_________________
Want List
Trade List(Up-to-date) |
|
| Back to top |
|
|
xsecret
Joined: 01 Feb 2004
Posts: 1846
Location: France
|
|
| Back to top |
|
|
Neology
Joined: 25 May 2011
Posts: 2412
Location: VIC, AU
|
| Posted: Sun Apr 26, 2020 10:47 am Post subject: |
|
|
On the fake one, by looking at the "windows compatible sign", the print looks too smooth.
Looking at all my AMD 486 100MHz, It should look pixelized...
Now, I am looking forward the UCA production and will be interested to test out all my collection to see what they really are
_________________
Want List
Trade List(Up-to-date)
Last edited by Neology on Sun Apr 26, 2020 11:00 am; edited 1 time in total |
|
| Back to top |
|
|
xsecret
Joined: 01 Feb 2004
Posts: 1846
Location: France
|
|
| Back to top |
|
|
ph4nt0m
Joined: 01 Jan 2018
Posts: 812
Location: Europe
|
| Posted: Sun Apr 26, 2020 4:41 pm Post subject: Re: Fake Am486DX4-100V16BGI |
|
|
| xsecret wrote: | As an avid ES collector, it's tempting to start with an ES, but the first CPU that really benefited from the UCA is a Am486DX4 I found while adding support for AMD 486s.
These CPUs are still selling on eBay for quite high price right now but I just found they are fake. Actually early remarked Am486DX4-100 V8T with only 8 KB L1 cache and no write-back.
|
Real V16BGI is package number 25544, not 25253
_________________
My Active Sales |
|
| Back to top |
|
|
