Jedi08

Joined: 03 Mar 2007 Posts: 463
|
Posted: Wed Nov 06, 2024 5:16 pm Post subject: Intel Pentium SX885 - glue |
|
|
I received this nice example with very good print. How to remove this kind of glue? Thank you!
Christian |
|
| Back to top |
|
 |
Thandor

Joined: 06 Oct 2008 Posts: 461
|
Posted: Fri Nov 08, 2024 8:35 am Post subject: |
|
|
I guess I would try scraping most away using a knife and remove the residue with acetone or brake cleaner. Make sure you don't spray these cleaning agents on the CPU since you might overspray on the black printing. Use a wet napkin or something instead. _________________ thandor.net - hardware
And the rest of us would be carousing the aisles, stuffing baloney. |
|
| Back to top |
|
 |
CPUShack

Joined: 16 Jun 2003 Posts: 34258 Location: State of Jefferson, USA
|
Posted: Fri Nov 08, 2024 1:28 pm Post subject: |
|
|
that pink stuff is hard to get off, I use a razer to get most, then some steel wool for the rest
rutlands glass cleaner can provide a nice final clean _________________ New for 2025! The CPU Shack has a co-processor!
Visit The CPU Shack of microprocessor history and information. |
|
| Back to top |
|
 |
xi11west

Joined: 07 Mar 2005 Posts: 1526 Location: Houston, TX
|
Posted: Fri Nov 08, 2024 4:59 pm Post subject: |
|
|
finger nail and an eraser , do it carefully. |
|
| Back to top |
|
 |
isa-d

Joined: 16 Aug 2006 Posts: 2984 Location: Italy
|
Posted: Sat Nov 09, 2024 5:13 am Post subject: |
|
|
It is not an exact science and there are no manuals to do it, each collector has developed his own method that is the result of years of experience and many failed attempts.
Mine is to heat the part and remove it with wooden chisels that do not leave marks on the ceramic, when most of it is removed you finish with a polishing paste for chrome plating.
ATTENTION! at this stage you must cover the gold parts and the writing with paper tape so they are not damaged.

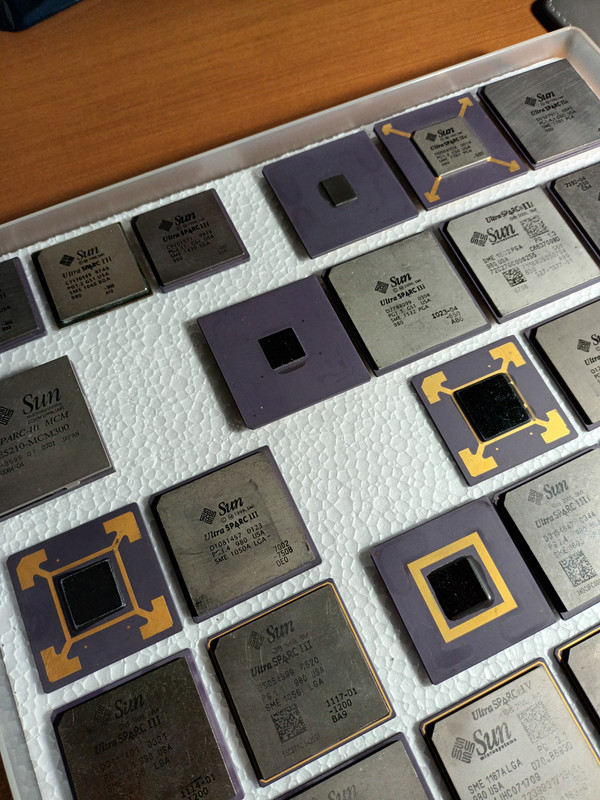

in the photo you can see the result in the SPARCs that have a similar cement, the final result is not bad.
 |
|
| Back to top |
|
 |
Jedi08

Joined: 03 Mar 2007 Posts: 463
|
Posted: Sun Nov 10, 2024 10:20 am Post subject: |
|
|
Thank you for all the advices. Right now I don“t have enough patience...  |
|
| Back to top |
|
 |
Neology

Joined: 25 May 2011 Posts: 2412 Location: VIC, AU
|
Posted: Mon Dec 09, 2024 1:09 am Post subject: |
|
|
I usually use a credit card (or plastic card) or a timber ruler to remove the pink glue.
I avoid using a metal tool which may scratch the ceramic. _________________ Want List
Trade List(Up-to-date) |
|
