EWASTENW
Joined: 09 Mar 2007
Posts: 11
Location: milwaukie OR
|
 Posted: Fri Mar 09, 2007 12:30 am Post subject: Hello New guy How to tell if you have an engineering chip |
 |
|
I own ewaste Northwest I did a pick up from a guy yesterday and all these chips where in a box.

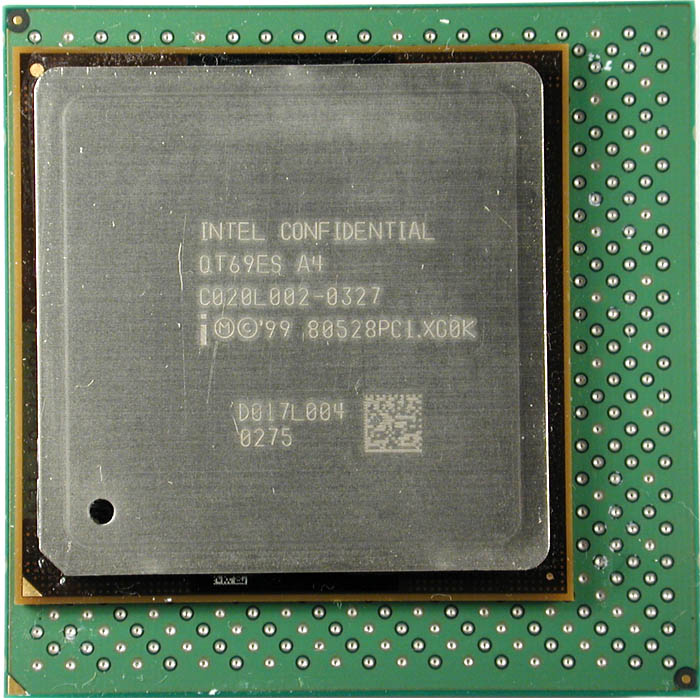

I'm kinda confused. First one Intel CONFIDENTIAL
QT69ES A4
C014L001-0124
'99 80528PC1.XG0K
At bottom
D014L001
0137
Now I looked this up and found one but this one is mounted to a larger chip.
The others look like regular PIII processors. I just thought is was odd that they all started with Q except for one
INTEL 01 MALAY 1266/512/133/1.45 Q137A753-0390
INTEL 00 MALAY 933/256/133/1.7V Q112A685-1751 SL4C9
INTEL 00 MALAY 866/256/133/1.7V SL4CB
INTEL 01 MALAY 1000/256/133/1.7V Q147A097-1888 SL52R
INTEL 01 MALAY 1000/256/133/1.75V L126A957-1727 SL5DV
_________________
ewaste nw |
|
| Back to top |
|
 |
jrmunro
Joined: 01 Feb 2003
Posts: 3149
Location: Vancouver, Canada
|
| Posted: Fri Mar 09, 2007 1:02 am Post subject: Re: Hello New guy How to tell if you have an engineering chi |
|
|
| EWASTENORTHWEST wrote: | I own ewaste Northwest I did a pick up from a guy yesterday and all these chips where in a box.
I'm kinda confused. First one Intel CONFIDENTIAL
QT69ES A4
C014L001-0124
'99 80528PC1.XG0K
At bottom
D014L001
0137
Now I looked this up and found one but this one is mounted to a larger chip.
The others look like regular PIII processors. I just thought is was odd that they all started with Q except for one
INTEL 01 MALAY 1266/512/133/1.45 Q137A753-0390
INTEL 00 MALAY 933/256/133/1.7V Q112A685-1751 SL4C9
INTEL 00 MALAY 866/256/133/1.7V SL4CB
INTEL 01 MALAY 1000/256/133/1.7V Q147A097-1888 SL52R
INTEL 01 MALAY 1000/256/133/1.75V L126A957-1727 SL5DV |
The first one is a P4 and is an engineering sample
None of the others are ES as there sspec`s start with `S` not `Q`
The 1266/512/133/1.45 doesn`t have an sspec shown.
John |
|
